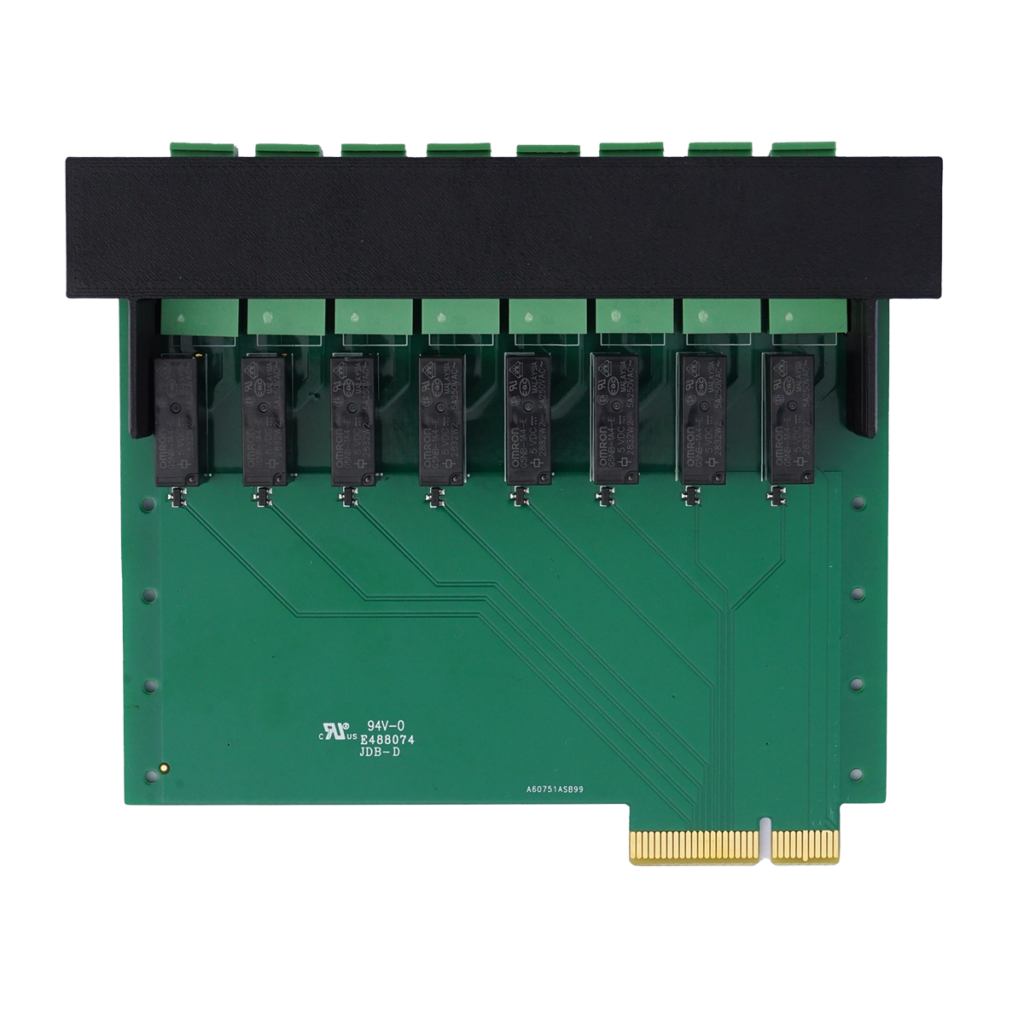

The FLEX-SW-250VAC-5A-RLY is an 8-channel relay card for the Flexs Q5M, capable of switching loads up to 5A at 250VAC. With full sealing, UL, CSA, and VDE conformity, it ensures reliable operation in a variety of AC load control applications.
Flexs Q5 8 Ch Relay Output Card ( 250VAC / 5A Relays)
$249.00
Product Information
The FLEX-SW-250VAC-5A-RLY is an 8-channel relay card designed for the Flexs Q5M modular system, allowing you to control AC loads up to 5A at 250VAC or DC loads up to 30VDC. Built for performance and reliability, it conforms to UL, CSA, and VDE standards and offers a 10KV impulse withstand voltage for enhanced protection. The relay card operates within a wide temperature range of -40°C to 70°C and is fully sealed, ensuring durability and resistance to harsh conditions.
With a maximum switching load of 1250VA or 150W, the FLEX-SW-250VAC-5A-RLY is perfect for various AC load control applications. The card’s contact rating of 5A, combined with its robust design, guarantees stable performance. For detailed technical specifications, refer to the provided relay manufacturer datasheet (G5NB-1A4-E DC5).
Whether for industrial, commercial, or residential use, this reliable relay card delivers exceptional control and performance.
